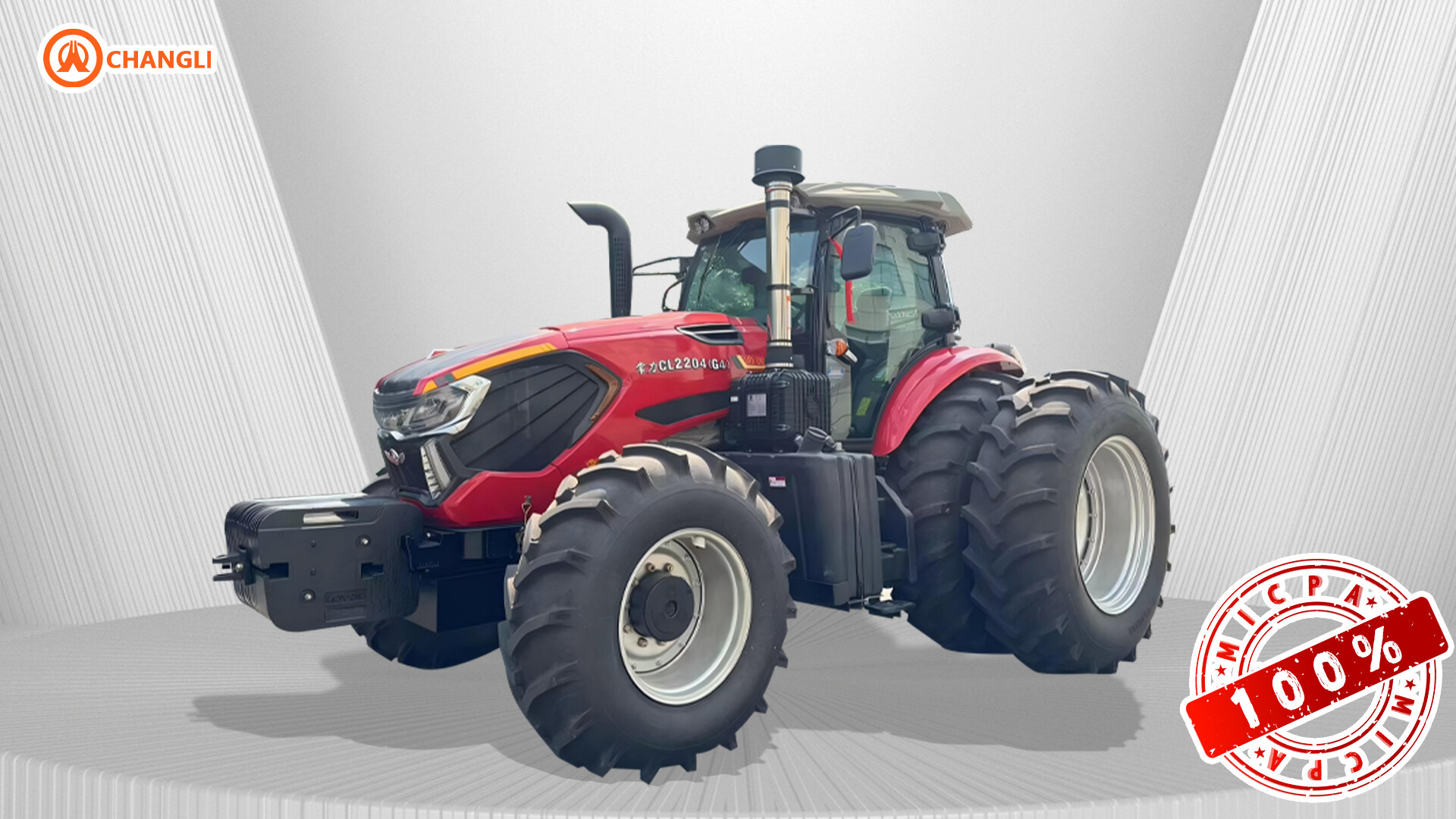

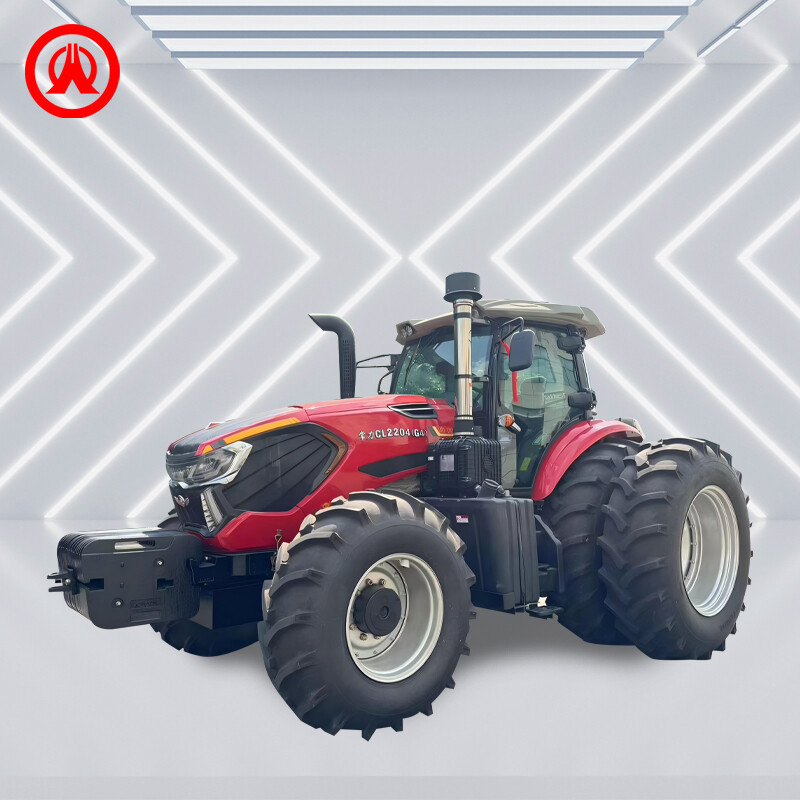

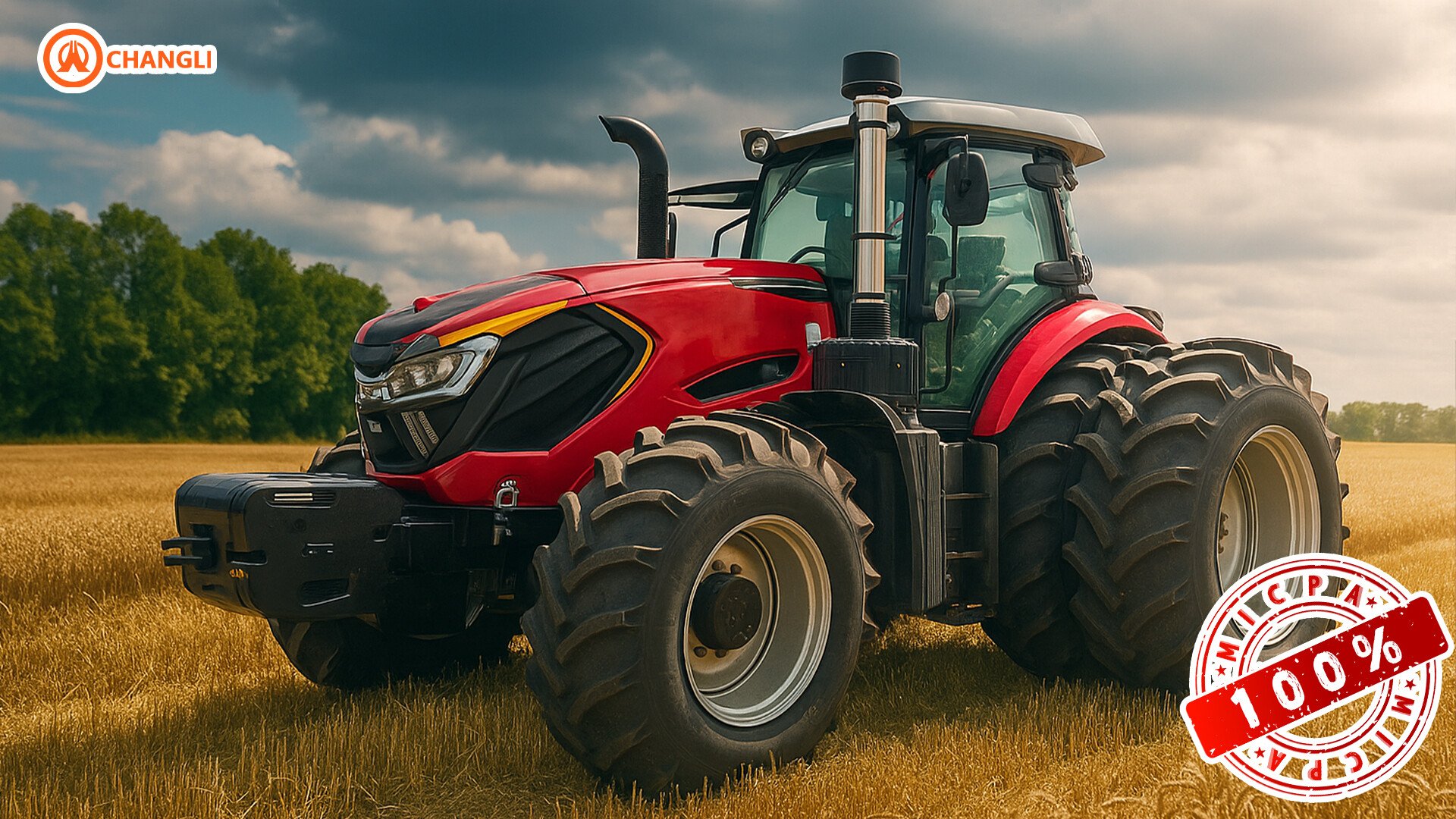

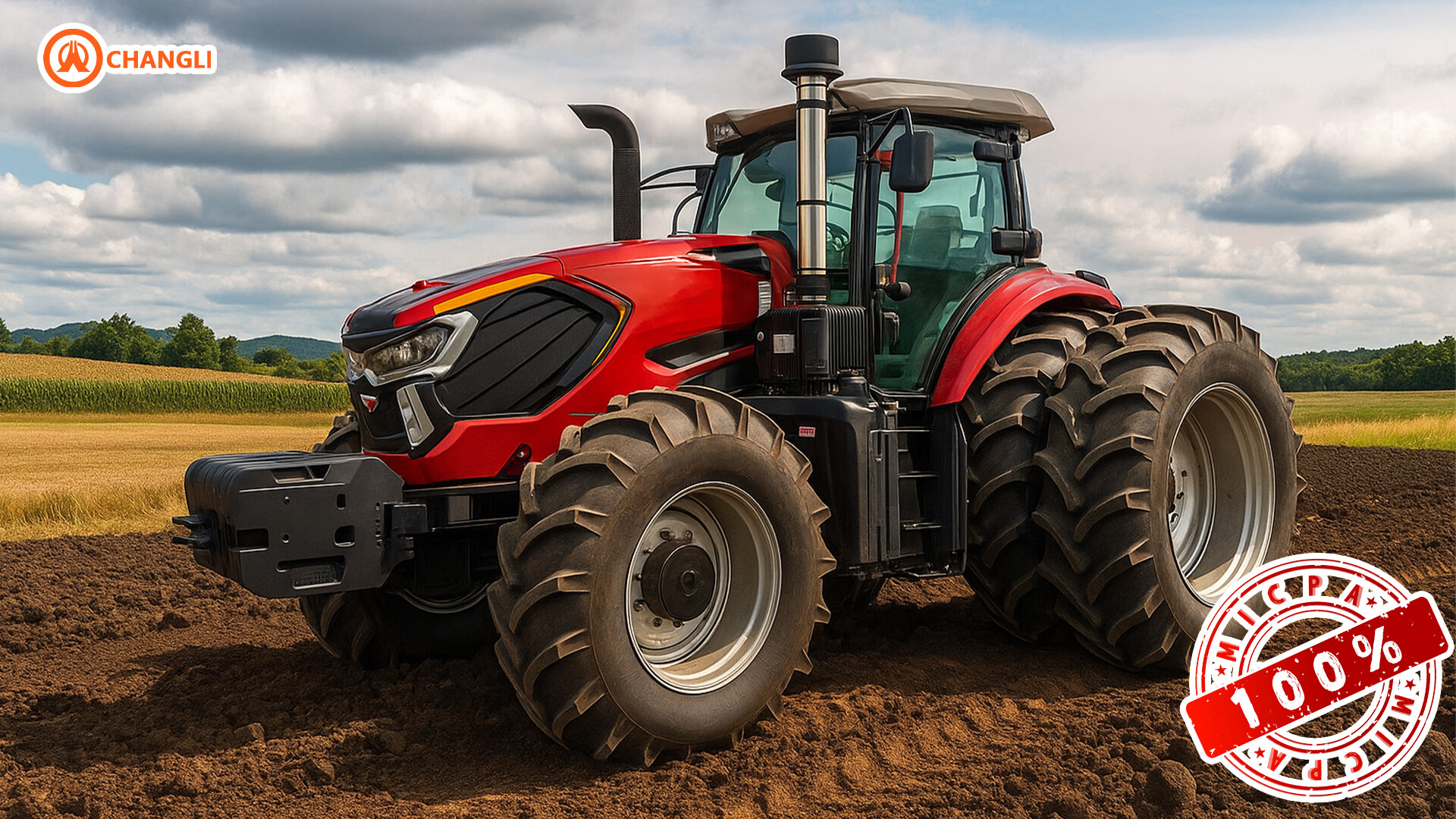

CL2204-TG

  • CL2204-TG
  • CL2204-TG
  • CL2204-TG

Description

Growing customers & dealers; reached 32 countries
Seize the opportunity—choose the 18-year source factory for tractors
8–220 HP, 70+ models
4 assembly lines, 150 units/day
70+ patented technologies
200+ refinements
100+ local customer leads per month for our dealers

Specification



Overall dimensions (L×W×H mm)Dual-wheel 5600×3570×3180, (Single-wheel 5600×2380×  3180
Overall weight8830 kg (Dual-wheel) / 8680 kg (Single-wheel)
Matched power (kW)162 kW
Drive type4WD
Wheelbase (mm)2850 mm
Wheel track (Front/Rear) (mm)1980 mm, 2040 mm, 2440 mm / 1700 mm - 2400 mm (Single-wheel), 2415 (Dual-wheel)
Minimum ground clearance (mm)450 mm
PTO speed540 / 760 rpm, or 760 / 850 rpm, or 760 / 1000 rpm
Standard counterweight (kg)1200 / 400 kg  (Single-wheel), 1200/0 (Dual-wheel)
Number of gears (Forward/Reverse)16 / 16
Transmission type4×4×(1+1) combination type
Tire model (Front/Rear)18.4 - 26 / 20.8 - 38
Hydraulic pump modelModel TY1604.58.010WP
Hydraulic suspension system typeSplit type (Lift/Lower)
