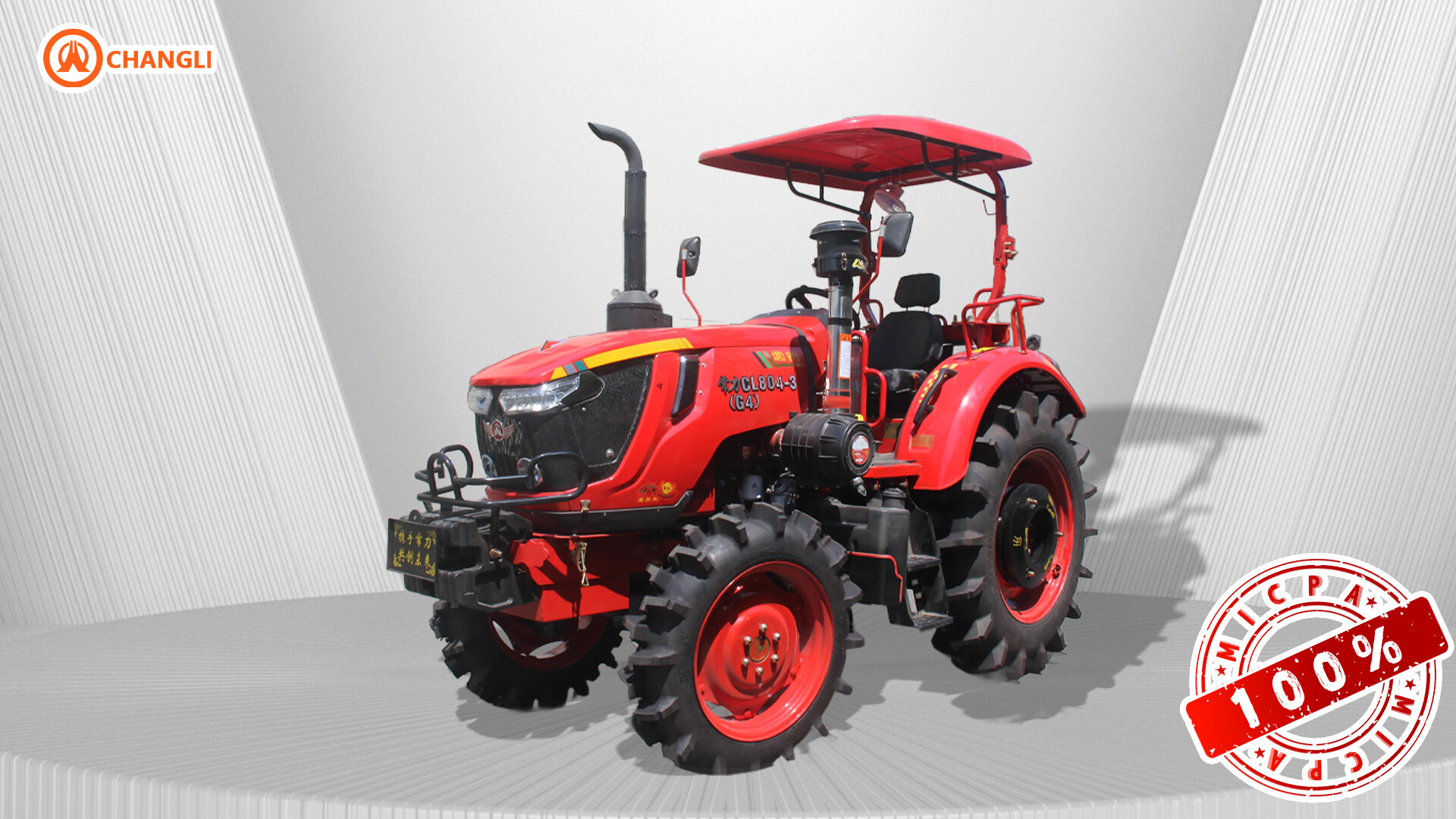

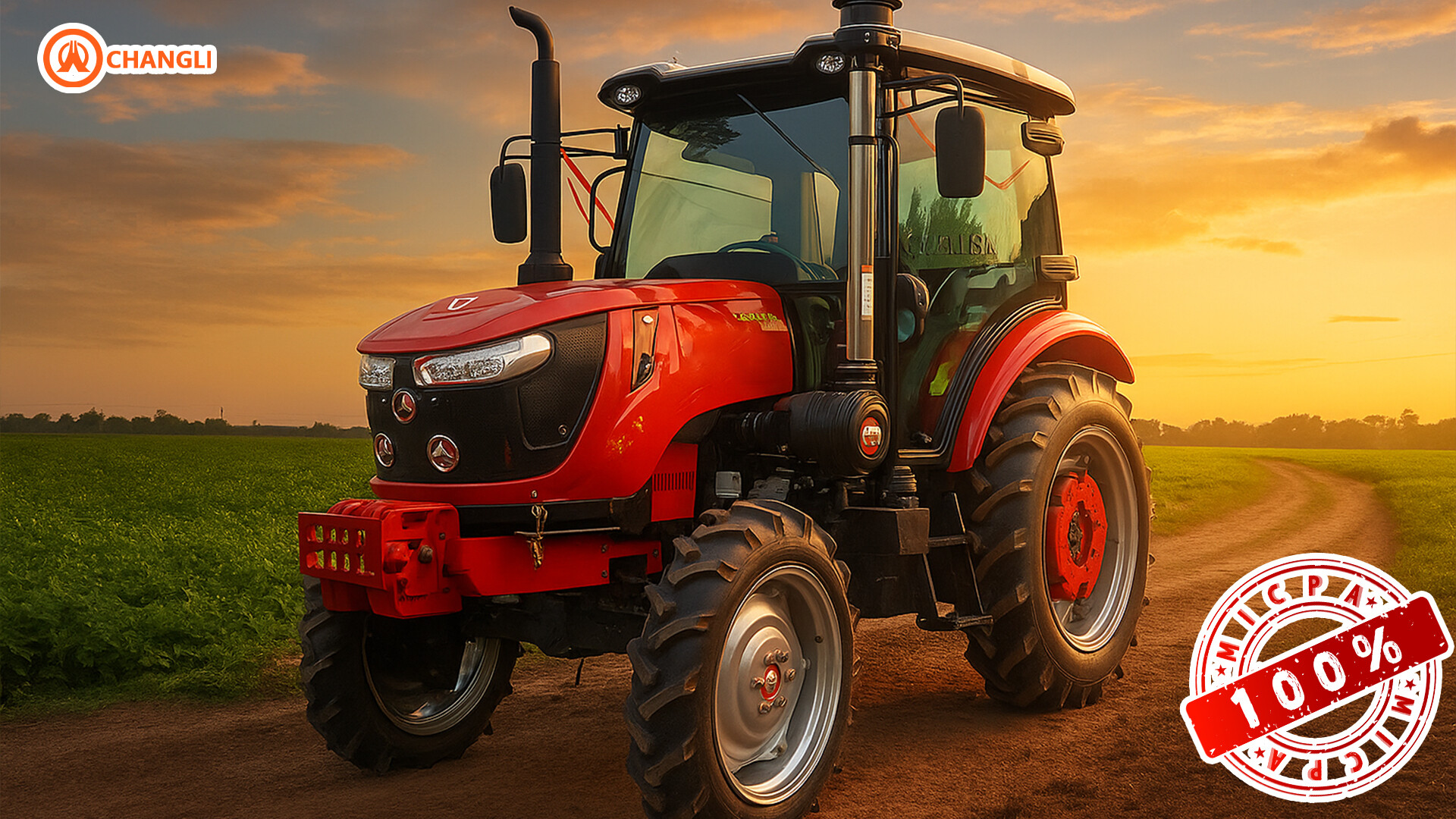

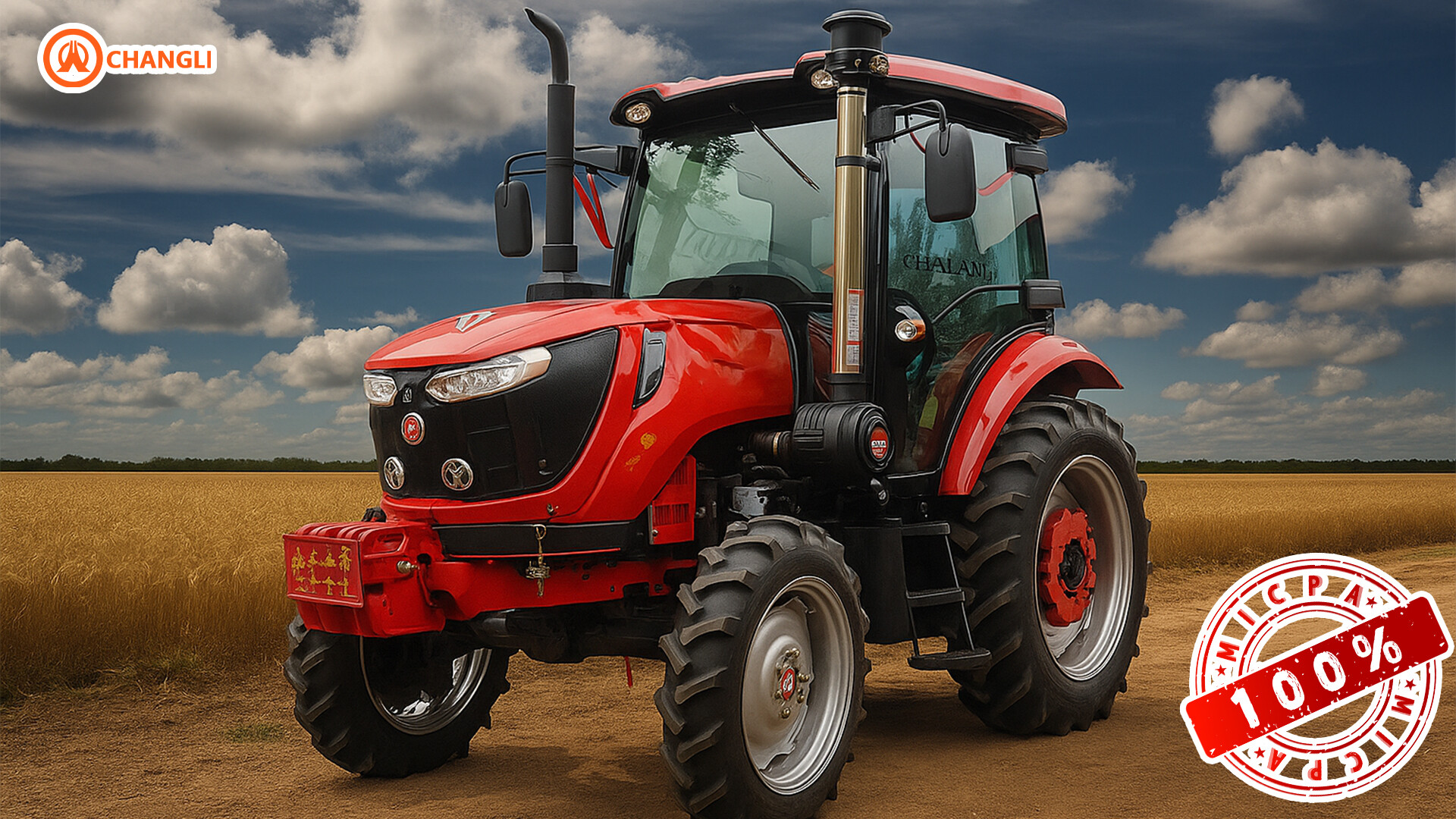

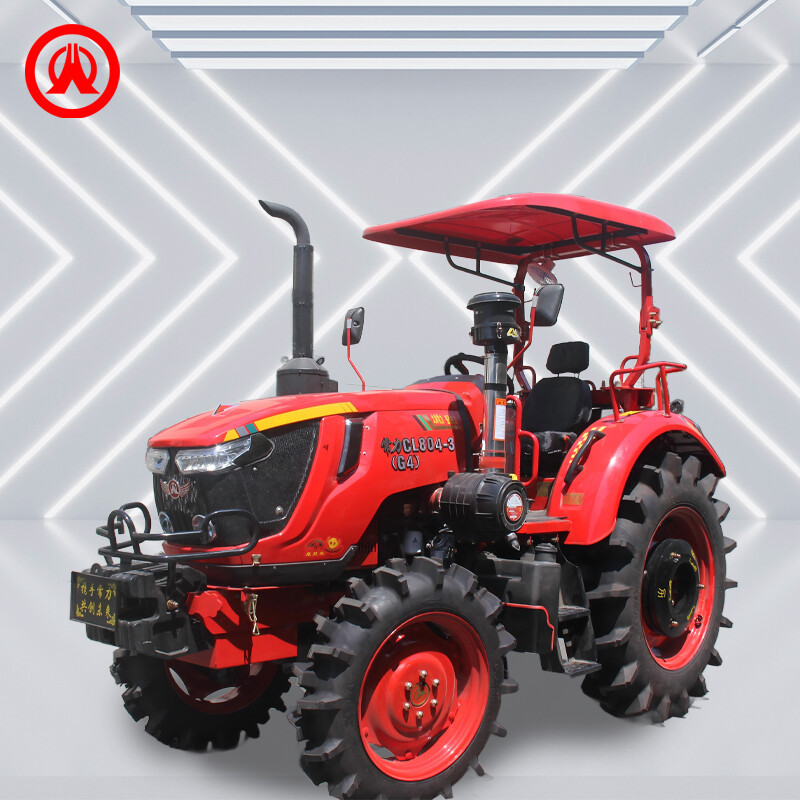

CL804-3-NB

Description

Growing customers & dealers; reached 32 countries
Seize the opportunity—choose the 18-year source factory for tractors
8–220 HP, 70+ models
4 assembly lines, 150 units/day
70+ patented technologies
200+ refinements
100+ local customer leads per month for our dealers

Specification



Overall dimensions (L×W×H mm)4000×1640×2580 (Safety frame top) / 3870×1640×2700 (Cab top)
Total weight (kg)2586 (Safety frame) / 2596 (Cab)
Matching power (kW)59 kW
Drive type4WD
Wheelbase (mm)1950 mm
Wheel track (Front/Rear) (mm)1290 mm, 1490 mm / 1300 mm, 1380 mm
Minimum ground clearance (mm)390 mm (Front axle bottom)
PTO speed540 rpm / 720 rpm
Number of gears (Forward/Reverse)8/2 (Optional 8+8 shuttle gear)
Transmission type4+1) ×2 Combined type
Wheel model (Front/Rear)8.3 - 24 / 11 - 32
Hydraulic pump modelModel CBN - F320
Hydraulic suspension system type(Forced lifting/forced lowering)


Previous:CL804-B-TB
