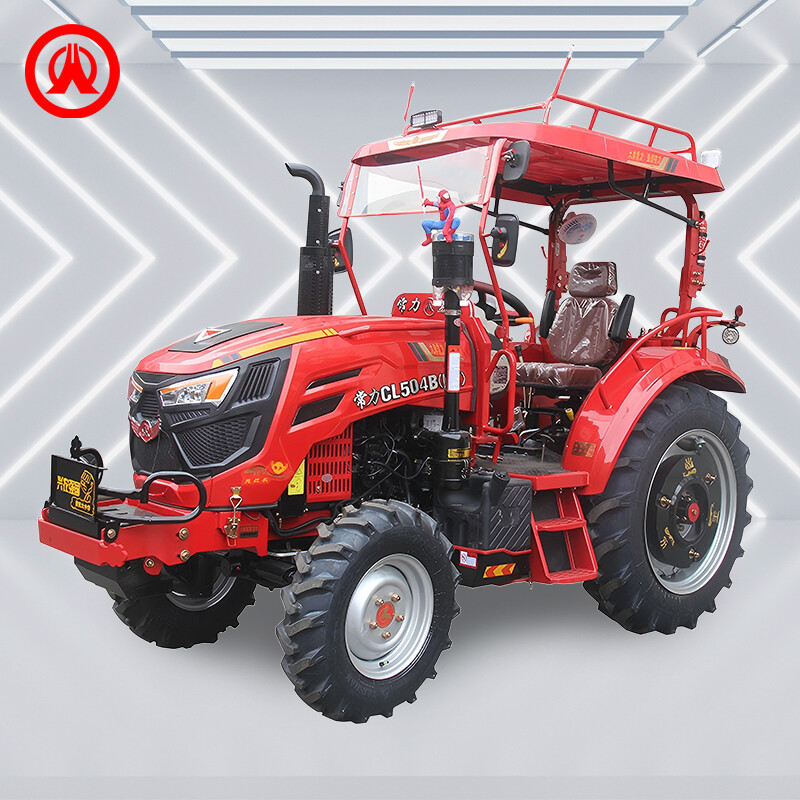

CL504-TY

Description

Growing customers & dealers; reached 32 countries
Seize the opportunity—choose the 18-year source factory for tractors
8–220 HP, 70+ models
4 assembly lines, 150 units/day
70+ patented technologies
200+ refinements
100+ local customer leads per month for our dealers

Specification



Overall dimensions (L×W×H mm)3600×1500×2100 (safety frame), 3600×1500×2300 (driver's cab)
Gross weight1672 (safety frame), 1812 (driver's cab) kg
Matching power (kW)36.8 kW
Drive type4WD
Wheelbase (mm)1835 mm
Wheel track (front/rear) (mm)1100 mm, 1200 mm, 1300mm / 1060 mm - 1200 mm
Minimum ground clearance (mm)320 mm
PTO speed540 rpm / 720 rpm
Number of gears (forward/reverse)8/2 (optional 8+8 gears)
Transmission type(4+1) ×2 combination type
Wheel model (front/rear)7.50 - 16 / 11.20 - 24
Hydraulic pump modelModel CBN - F316
Hydraulic suspension system typeSplit type (strong lift/strong drop)
