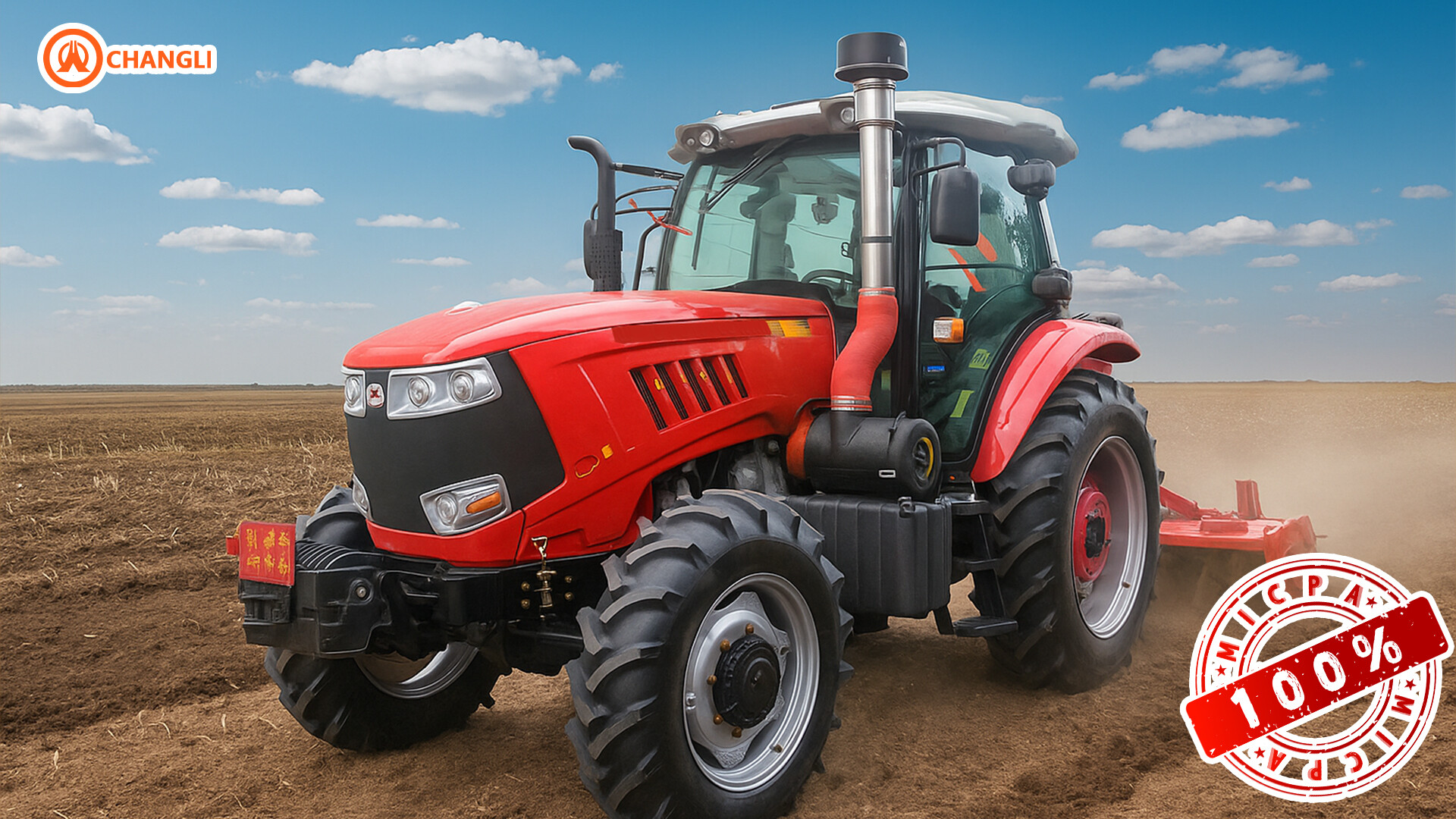

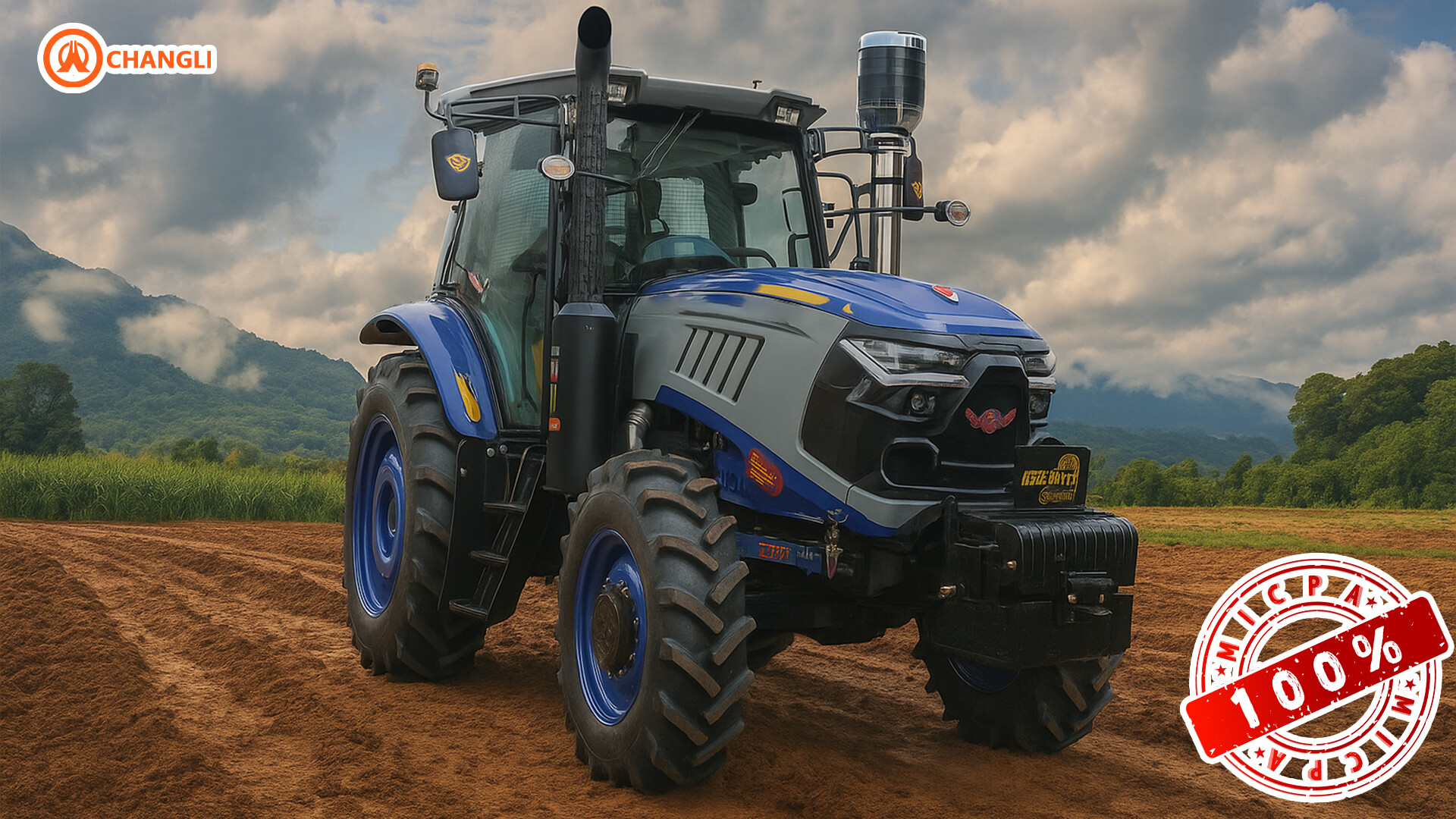

CL1604-1-TD

Description

Growing customers & dealers; reached 32 countries
Seize the opportunity—choose the 18-year source factory for tractors
8–220 HP, 70+ models
4 assembly lines, 150 units/day
70+ patented technologies
200+ refinements
100+ local customer leads per month for our dealers

Specification


External dimensions (L×W×H mm)4920 mm × 2140 mm × 2945 mm (top of air filter)
Total weight (kg)5506 kg
Matched power (kW)117.7 kW
Drive type4WD
Wheelbase (mm)2520 mm
Wheel track (front/rear) (mm)1500 mm, 1600 mm, 1700 mm / 1500 mm - 1900 mm
Minimum ground clearance (mm)400 mm (bottom of front axle)
PTO speed540 / 760 rpm, or 760 / 850 rpm, or 760 / 1000 rpm
Number of gears (forward/reverse)16/8 (expandable to 24+8 gears)
Transmission type4×(2+1)×2 combination
Wheel model (front/rear)12.4 - 24 / 16.9 - 34
Hydraulic pump modelModel RM954.58.010
Hydraulic suspension system typeSplit type (strong lift/drop)
