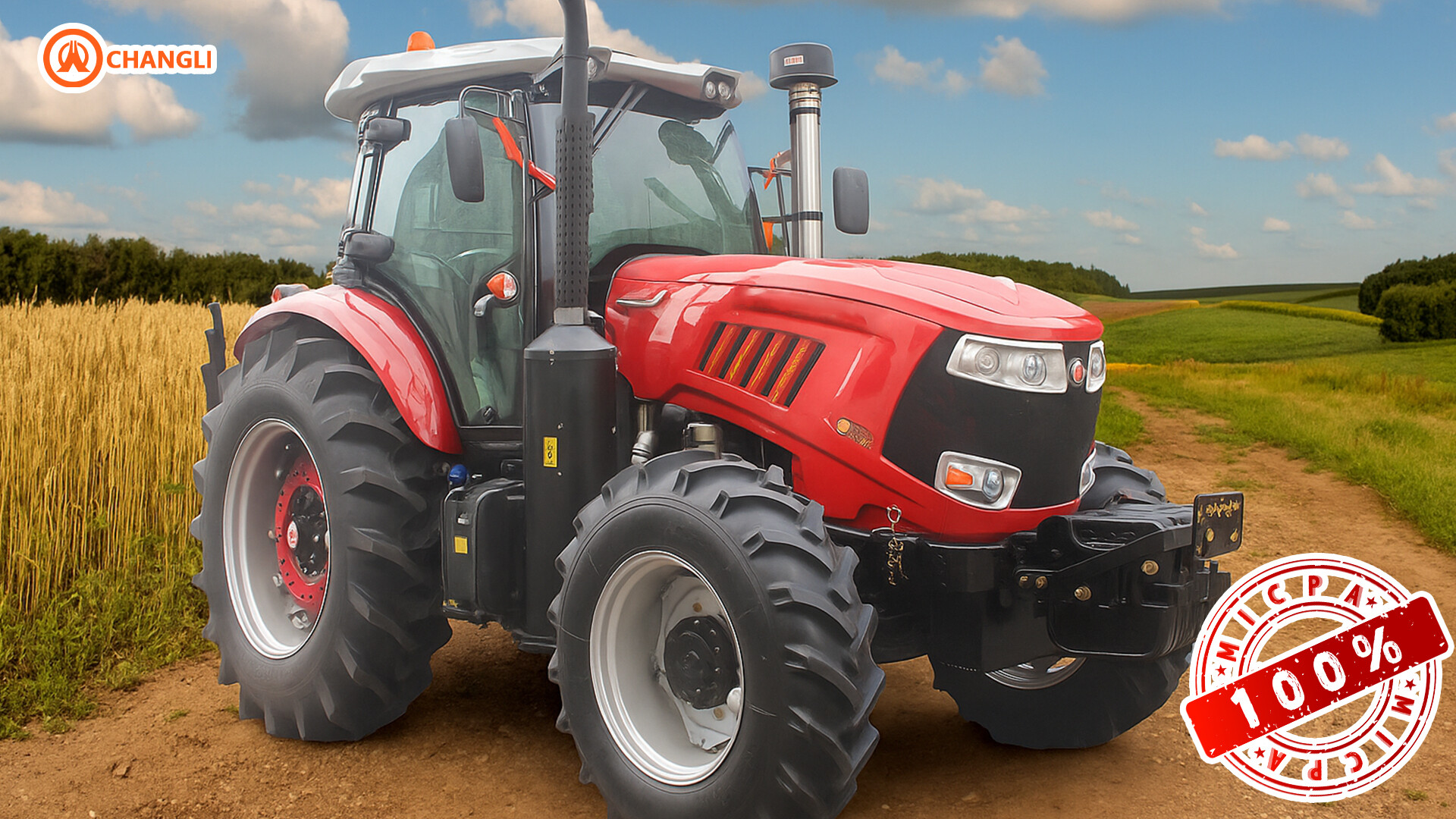

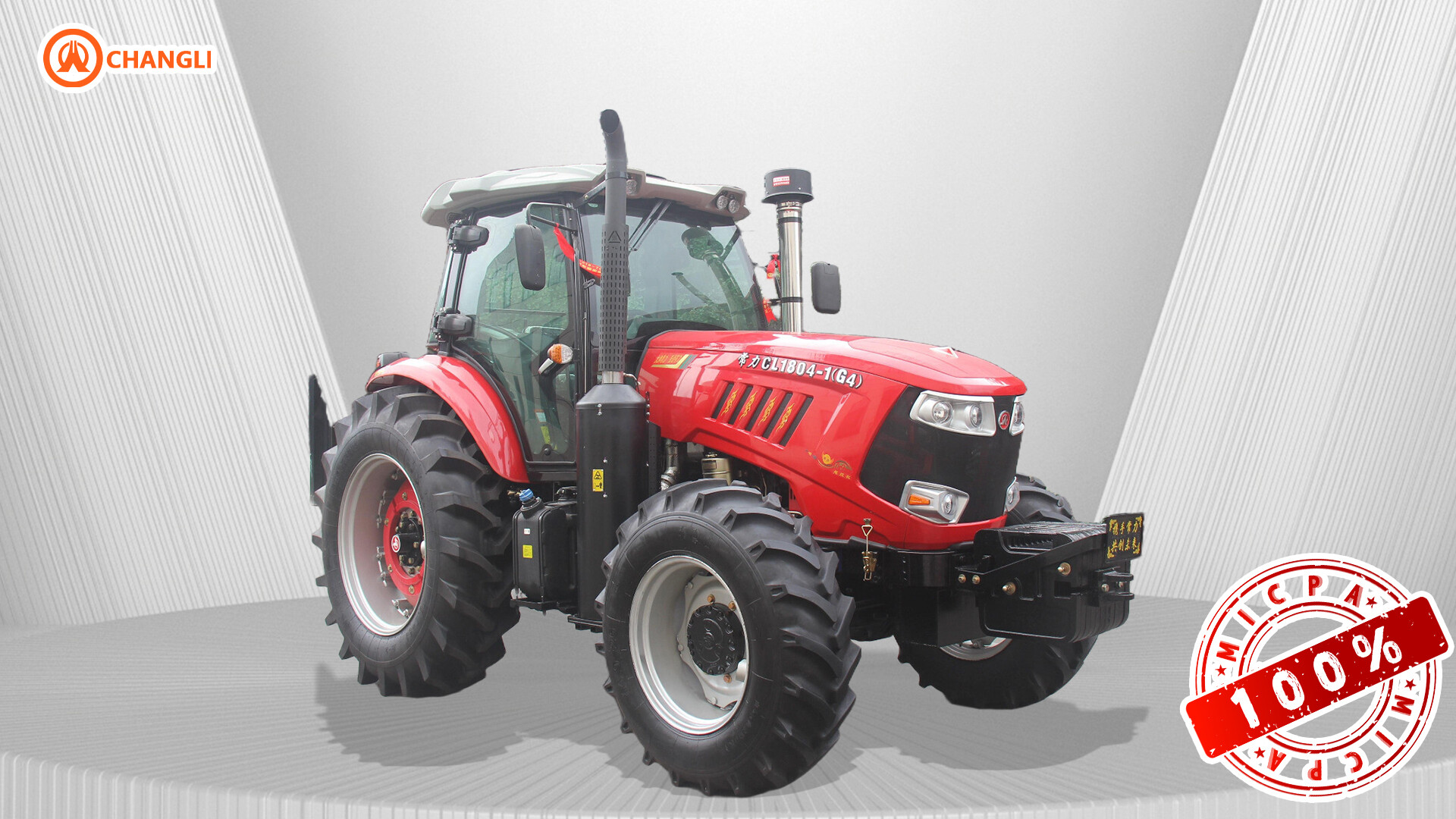

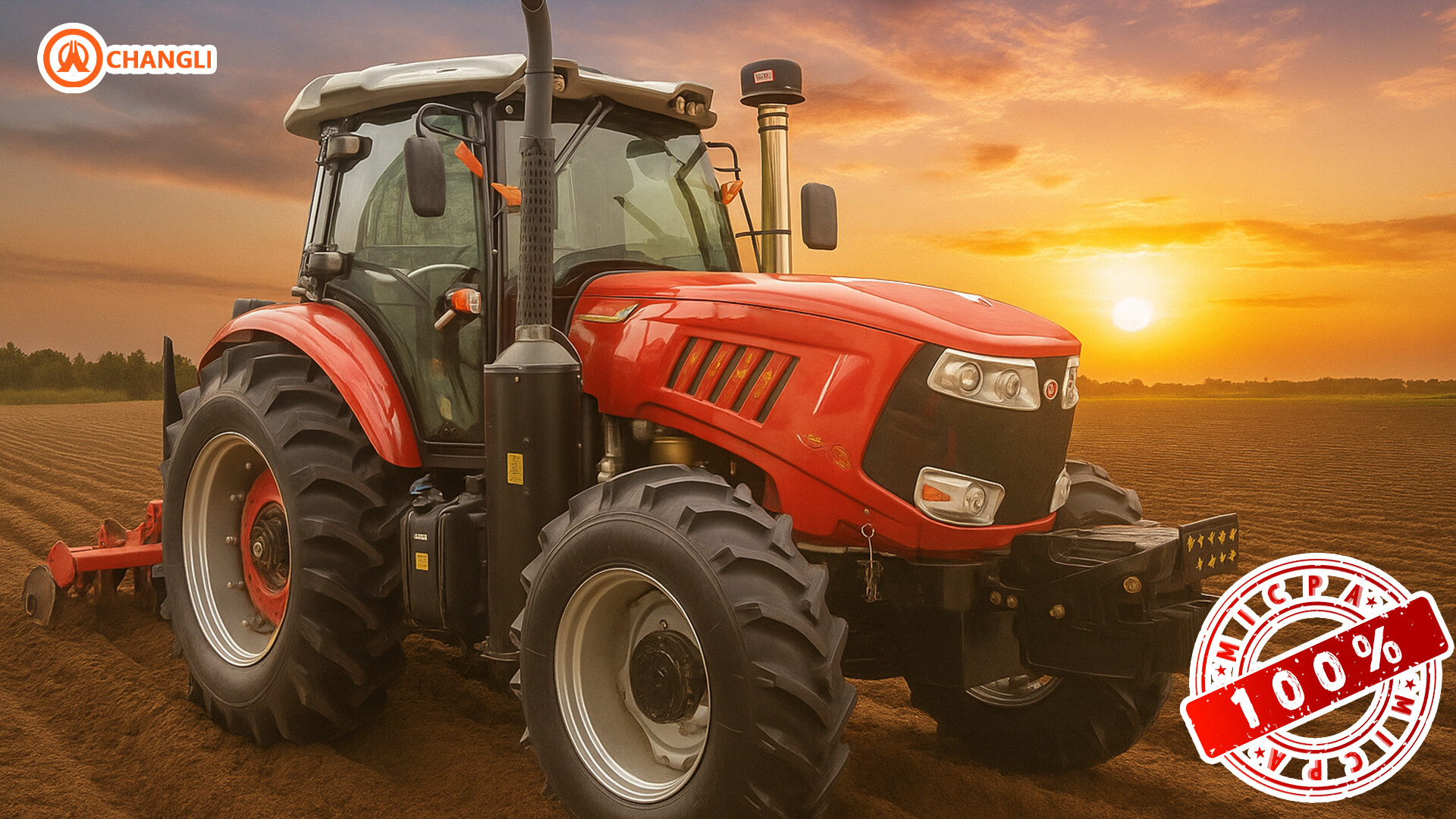

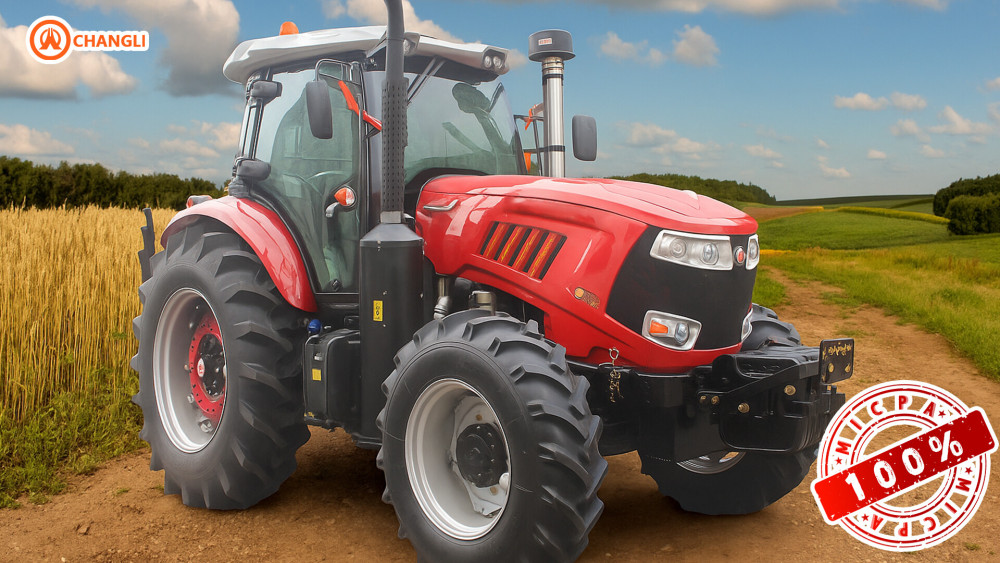

CL1804-1-TF

Description

Growing customers & dealers; reached 32 countries
Seize the opportunity—choose the 18-year source factory for tractors
8–220 HP, 70+ models
4 assembly lines, 150 units/day
70+ patented technologies
200+ refinements
100+ local customer leads per month for our dealers

Specification


Overall dimensions (L × W × H mm)5150 × 2380 × 3000 (top of air filter)
Total weight (kg)6450 kg
Matching power (kW)132.5 kW
Drive type4WD
Wheelbase (mm)2600 mm
Wheel track (front/rear) (mm)1950 mm, 2070 mm / 1750 mm - 1996 mm
Minimum ground clearance (mm)460 mm (bottom of front axle)
PTO speed540 / 760 rpm, or 760 / 850 rpm, or 760 / 1000 rpm
Number of gears (forward/reverse)16/8 (expandable to 24+8)
Transmission type4×(2+1)×2 configuration
Tire size (front/rear)14.9 - 26 / 18.4 - 38
Hydraulic pump modelModel CBT-F430
Hydraulic suspension system typeSplit type (strong lift/strong drop)
